MPPT T40A T SERIES SOLAR CHARGE CONTROLLER

The characteristic of this controller is that the working voltage of the solar panel can be tracked to the maximum current emitted by the solar panel by intelligently adjusting the solar panel, so that the solar panel always works at the maximum power point of the V-A characteristic curve. Compared with ordinary solar controllers, the utilization of solar panel power generation has increased by 10-30%

Vivid LCD graphic symbols, concise button mode

Intelligent PWM charging method with automatic temperature compensation

Adjustable slave discharge control parameters, settable load working mode

Battery reverse discharge, undervoltage, reverse connection protection and other protection functions

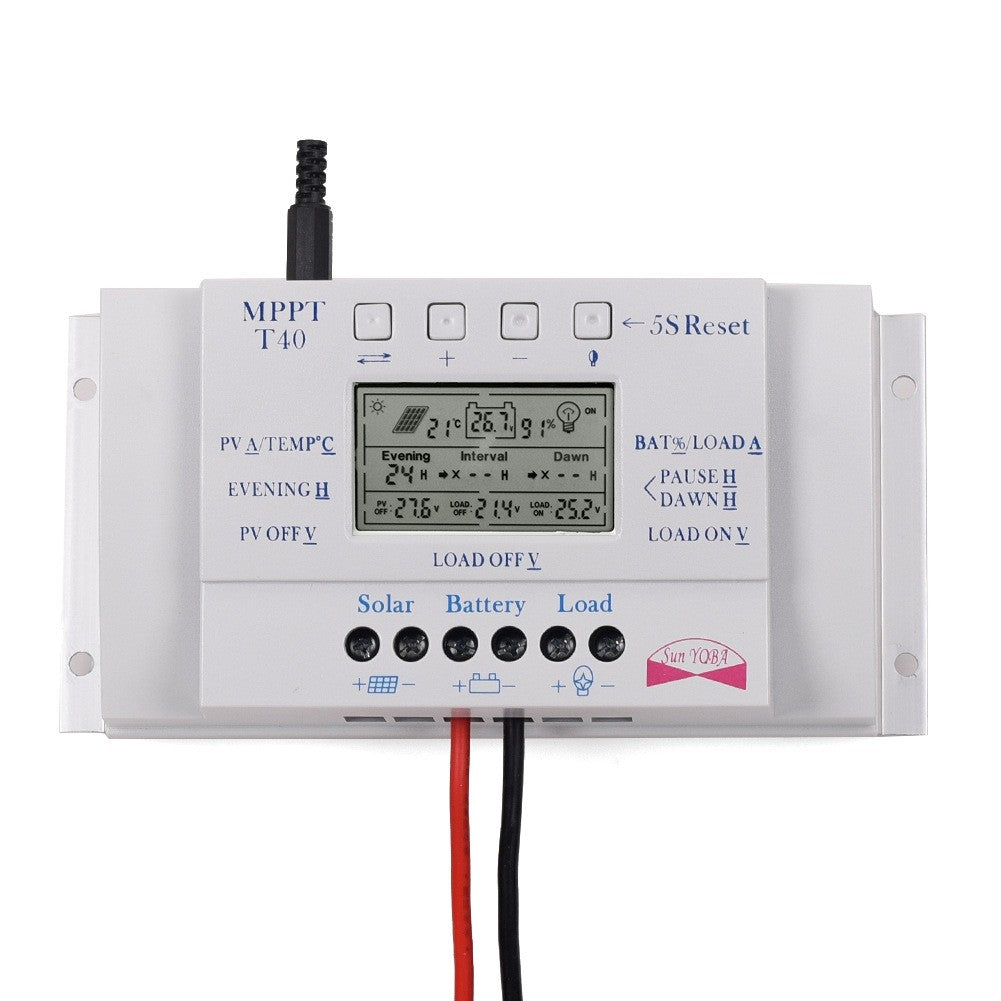

• LCD Screen display
• PWM charging mode+MPPT
• Simple More effective operation
• Parameter can reset
• A key to open and close the load
• A key to restore the factory settingRated charging current: 40A
• Floating charge voltage: 13.8V / 27.6V
• Undervoltage protection: 10.6V / 21.2V
• Over-discharge recovery voltage: 12.6V/25.2V
• Working temperature: -10-60 degrees Celsius
• Storage temperature: -30 -70 degrees Celsius
• Wiring specification: less than or equal to No. 6 AWG (12 square millimeters)

Net weight: 0.43 kg/0.95 pounds
Size: 16.5×9.5×6 cm/6.5x3.7x2.4 in.
