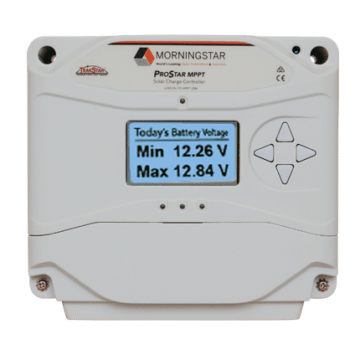

PS-MPPT-25M MORNINGSTAR CHARGE CONTROLLER (With Meter Display)

The ProStar MPPT™ is a mid-range solar charge controller with TrakStar Technology™ that provides  maximum power point tracking (MPPT) battery charging for off-grid photovoltaic (PV) systems up to 1100 watts.  It can charge Lead-Acid, Lithium, NiCd, and other battery chemistries.  Custom settings programming is required for Lithium, NiCd, and other battery chemistries.

This product reflects Morningstar’s policy of continuous improvement through regular upgrades and enhancements. Because Morningstar’s employee-owned culture never “rests on success,” ProStar MPPT customers can own both a legend and the latest in a single product. Includes Meter Display.

*Custom programming required for other than lead acid batteries.

**Input power can exceed Nominal Operating Power. Controller will limit and provide its rated continuous maximum output current into batteries.

Datasheet

Operation Manual

Quick Start Guide

Meter Map

MODBUS Document

ProStar MPPT Controller | 4 minute video

Morningstar Charging Experts featuring ProStar MPPT | 6 minute video

Features:

• High Reliability – conformally coated circuit board, corrosion resistant terminals, premium high-frequency CoilCraft inductors, over-spec’d components, transient surge suppression, and lowest published failure rate in the industry.
• Automatic PV Based Lighting Control – field adjustable, multi-event load control enables powerful options for PV lighting systems.
• Maximizes Energy Harvest – using TrakStar MPPT Technology to determine and adjust to the true maximum power point as solar insolation changes throughout the day.
• MODBUS Communications – Solar Industry Standard MODBUS communications protocol allows for easy programming, control, remote data access and charge synchronization.
• SNMP Monitoring – when used with the EMC-1 accessory to enable your network management systems to display key solar power metrics and alert/fault codes.
• High Efficiency – at low, medium, and high output power levels to maximize energy harvest and minimize heat buildup inside the controller.
• High Strength – polycarbonate case and extruded aluminum heatsink.
• Data Logging – up to 256 days of detailed power and load data.
• Self Diagnostics – continuous monitoring and reporting of any errors through its status LED’s, optional display or communication port.
• Low Noise Design – meets US Federal Communications Commission Class B specifications.
• Meter – allows adjustments to charging, lighting, and load control settings without a computer.
• Fanless design for long-term reliability–no moving parts to fail, no dirt and debris sucked into the controller, and no parasitic load to reduce efficiency.

Dimensions: — Standard: 20 x 17 x 7 cm / 7.9 x 7.6 x 2.8 in

         — w/ Wire Box: 20 x 28.5 x 9.2 cm / 7.9 x 11.2 x 3.6 in

Weight: — Standard: 1.4 kg / 3.1 lbs

         — w/ Wire Box: 1.8 kg / 4.0 lbs
