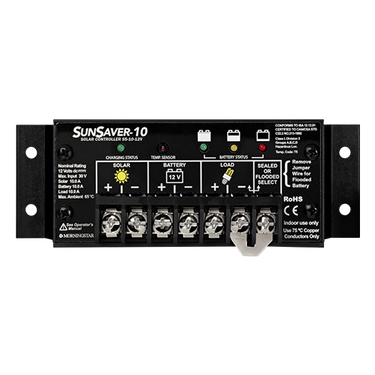

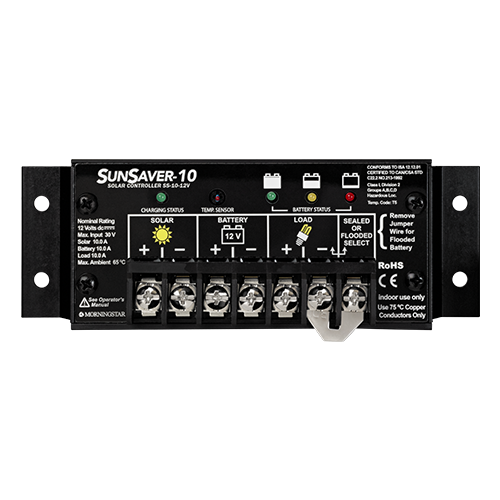

SS-10-12V MORNINGSTAR CHARGE CONTROLLER

Morningstar’s SunSaver SS-10-12V is the world’s leading small solar controller for both professional and consumer applications including standard features and capabilities not found in any other small PV controller. SunSaver's technology provides: exceptional reliability, PWM battery charging and consistent high quality. Morningstar's SunSaver solar charge controller series is approved for use in hazardous locations, is tested and certified, and manufactured with Morningstar's exceptional quality.

The SunSaver's advanced design delivers outstanding performance and value. The SunSaver's low cost is made possible by Morningstar's unique approach to design and manufacturing their charge controllers: automatic production, ISO 9002 quality programs, latest power electronic technologies, latest control and logic technologies & high volume manufacturing.

Datasheets

Operation Manual

Quick Start Guide

Morningstar "Charging Experts" featuring SunSaver | 7 minute video

Features:

• Powerful PWM Technology - Series design (not shunt). True 0 to 100% PWM duty cycle. Setpoint accuracy to 35 mV. No need to derate. Parallel for 40 amps or more.
• Safety & Certifications - 100% solid state. Rated for 25% overloads. Fully encapsulated in epoxy potting. Marine rated terminals / anodized case. Approved for use in hazardous locations - Class 1, Division 2, Groups A, B, C, D. ISO 9002 quality programs.
• LONGER BATTERY LIFE: This controller extends battery life with series PWM four-stage charging and temperature compensation. It supports selectable options for sealed or flooded batteries, includes a 3-state battery LED indicator, and offers dead battery recovery.
• EASY INSTALLATION: Enjoy hassle-free setup with factory pre-sets that remove the need for manual installation adjustments. Electronic protections safeguard against wiring mistakes, ensuring safe and straightforward installation. Each SunSaver comes with a wire terminal cover for added convenience.
• ELECTRONIC PROTECTIONS: These systems feature built-in electronic protection against surges, short-circuits, overloads, and reverse polarity. They include high voltage and high temperature disconnect to safeguard against damage to electrical components. Advanced self-diagnostics alert users to installation or operational errors, while automatic recovery occurs when short circuits are cleared

Dimensions :  ‎ 6 x 2.18 x 1.32 inches; 8 ounces
