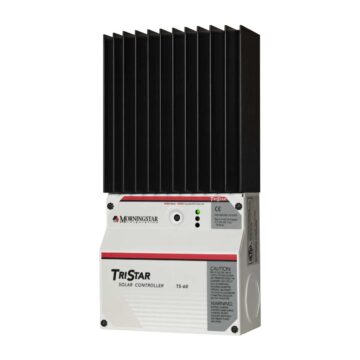

TS-60 MORNINGSTAR CHARGE CONTROLLER (Meter Display Sold Separately)

The TriStar™ is a three-function PWM controller for larger systems, providing reliable PWM solar battery charging or load control or diversion regulation. The controller operates in one of these modes at a time and two or more controllers may be used to provide multiple functions.  It can charge Lead-Acid, Lithium, NiCd, and other battery chemistries.  Custom settings programming is required for Lithium, NiCd, and other battery chemistries.

The TriStar uses advanced technology and automated production to provide exciting new features at a competitive cost to regulate battery charging in home systems and professional applications. The 60 amp version is also available with a factory installed meter.

“It is a Morningstar, what do you expect! It is great.”

*Custom programming required for other than lead-acid batteries.

Data Sheet

Operation Manuel

Quick Start Guide

Meter Map

MODBUS Document

Features:

• Built for reliability and performance, with an oversized heatsink and overspec’d components. Fully-rated for operation at temperatures up to 45C.
• More information with LED indicators. Optional meter displays extensive system and controller information in five languages; automatic self-test and
  reset.
• Communications capability with RS-232 port, connects to a PC for custom settings, data logging, remote monitoring and control.
• SNMP monitoring supported when used with Ethernet MeterBus Converter so you can view system current, voltages, and alerts in your network management system.
• Fully adjustable with DIP switches for seven digital presets. Additional
  custom setting via RS-232.
• Extensive electronic protection against reverse polarity, short circuits,
  overcurrent and excessive temperature.
• Low telecom noise. DIP switch setting will change PWM to “On-Off” battery charging.
• Fanless design for long-term reliability.

Dimensions Height: 26.0cm/10.3 in Width: 12.7cm/5.0 in Depth: 7.1cm/2.8 in

Weight 1.6kg/3.5lb
