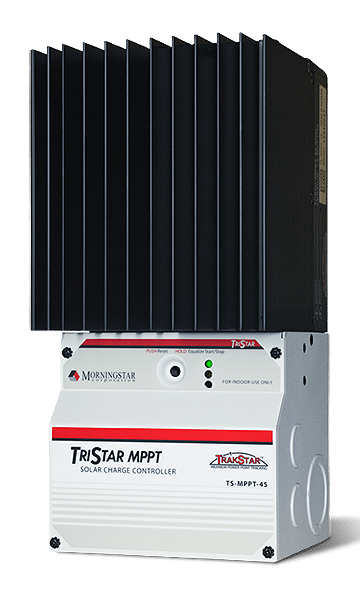

TS-MPPT-45 MORNINGSTAR CHARGE CONTROLLER

The industry-leading TriStar MPPT™ with TrakStar Technology is an advanced maximum power point tracking controller for larger off-grid photovoltaic (PV) energy systems up to 3kWp.  It can charge Lead-Acid, Lithium, NiCd, and other battery chemistries.  Custom settings programming is required for Lithium, NiCd, and other battery chemistries.

An iconic design, TriStar MPPT’s have been proven in solar installations around the globe and remain the first choice for designers of mission-critical systems where failure is not an option.The TriStar MPPT (includes RTS) Meter Display Sold Separate.

“one of the best charge controllers out there… these things are tanks”

*Custom programming required for other than lead acid batteries.

**Input power can exceed Nominal Operating Power. Controller will limit and provide its rated continuous maximum output current into batteries.

Datasheet

Operation Manual

Quick Start Guide

TriStar MPPT Meter Map Solar Charging

Morningstar "Charging Experts" - TriStar Solar Charge Controllers | 7 Minute Video

Features:

• Maximizes energy harvest – superior peak power tracking over conventional MPPT controllers.
• Highest peak efficiency for off-grid controllers in the industry: 99% (TS150).
• Built for reliability and performance, with an oversized heatsink and over-spec’d components. Fully-rated for operation at temperatures up to 45C.
• Extensive networking and communications features enable system monitoring, data logging, and adjustability.
• On-board RS-232 port included on all models; Ethernet included on all 60A models.
• Extensive electronic protections include short-circuit, over-current and reverse polarity to ensure the controller will not be damaged by wiring mistakes or overloads.
• Certified to IEC 62093 which establishes requirements for the design qualification of balance-of-system (BOS) components used in terrestrial photovoltaic (PV) systems.
• Fanless design for long-term reliability.

Dimensions: (H) 291 mm / 11.44” (W) 130 mm / 5.12” (D) 142 mm / 5.58”

Product Weight: 4.14 kg / 9 lbs 2 oz

Shipping Weight (2 pcs/carton) 11.6 kg / 25 lbs 9oz
