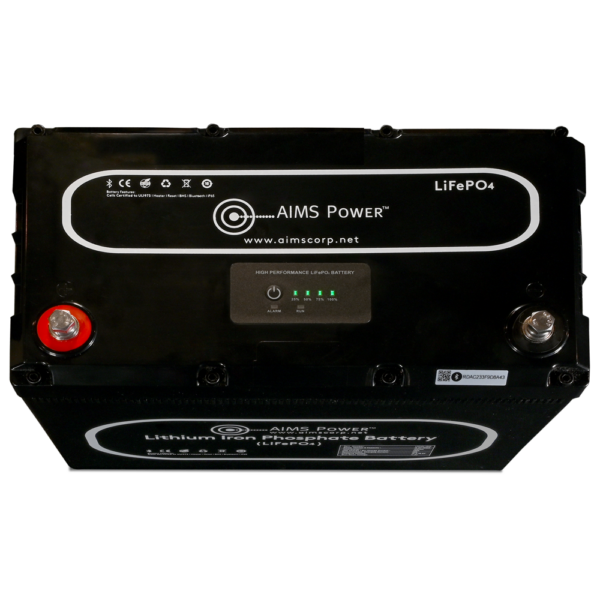

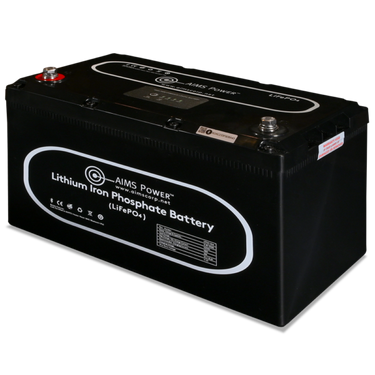

Lithium Battery 104Ah with Wake Up, Heater & BT Monitoring 12V LiFePO4
This 104A lithium battery offers a unique built-in HEATER & WAKE-UP feature. These features allow a wider temperature range for charging and will spark the battery enough allowing a charge even if the battery has previously been over discharged. No need to jumper to another battery to “wake up” a over discharged battery.Â
Just launched, the new and improved 104 amp 12V lithium iron phosphate (LiFePO4) battery and is receiving a lot of positive feedback. The LiFePO4 battery maintains constant output voltage, providing more efficient power. This allows the cell to deliver virtually full power until it is fully discharged without harming the battery, and it can simplify or even eliminate the need for voltage regulation circuitry. The battery has a much longer cycle life capacity, and is easier to maintain compared to other battery technologies. The LiFePO4 technology has better thermal and chemical stability, which improves battery safety and packed with power in a small and lightweight footprint. The internal heater helps keep the temperature elevated, so charging is more efficient in colder climates.Â
Easily uses the same space as your existing 12V battery and replaces lead acid, AGM or Gel battery applications in RVs, golf carts, boats, commercial vehicles, off grid back up power and much more. Not intended to replace starting batteries. Backed by a 10 year pro-rated warranty and battery cell IEC rating that specifies requirements and tests for the safe operation of secondary lithium cells and batteries used in industrial applications including stationary applications.Â
Features:Â
- Automatic wake-up button in case battery is over discharged and/or has low voltage (no need to parallel another battery or have special charger to wake)
- Automatic heater for charging in colder environments (no external wiring needed)
- Display
- Extremely high number of charge/discharge cycles
- > 10 Year lifespan with proper maintenance

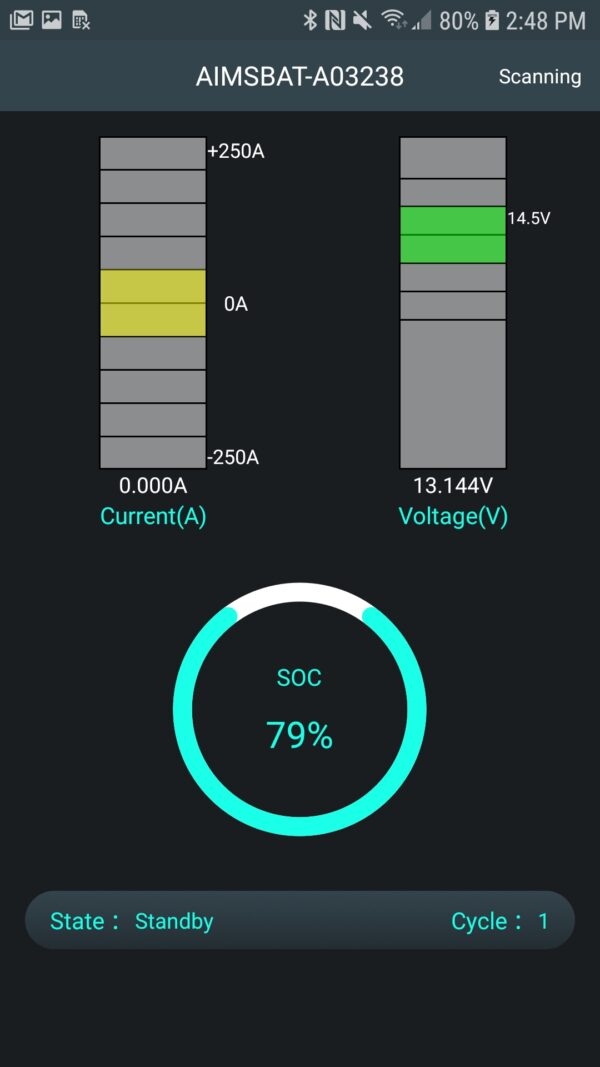

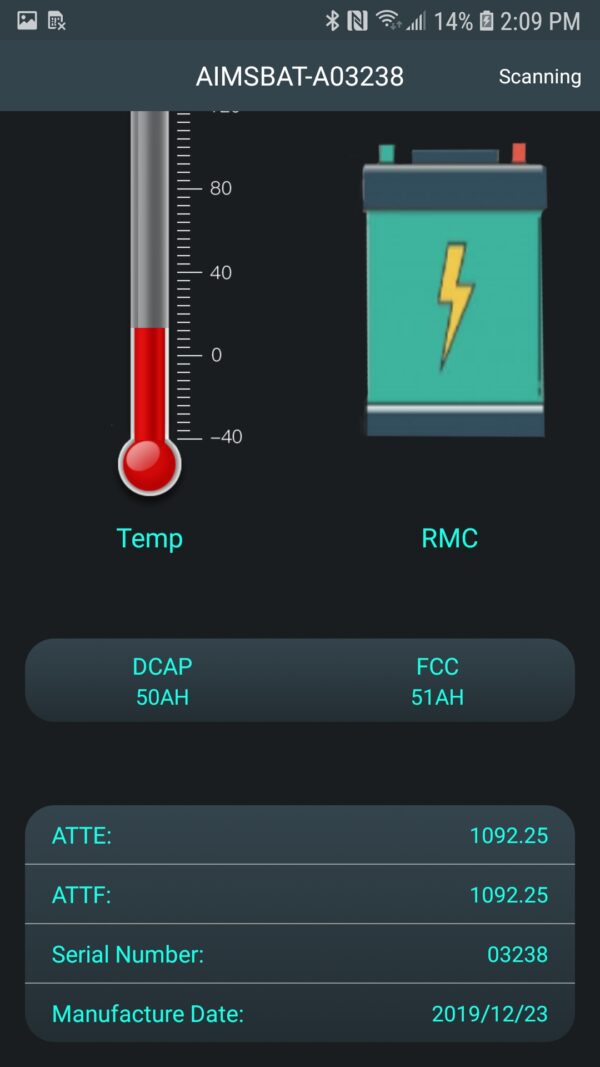

- Bluetooth monitoring
- Wide operating temperature range
- Unsurpassed high temperature performance
- Green energy without metal contaminant
- Low maintenance
- High amp capacity
- Stable output voltage
- Little self-discharge
- BMS safety protection. Each cell is fused and if for some unlikely situation a cell fails, this design will isolate the cell stopping any other damage and allows the battery to function safely
- Convenient removable carry handle
- Lightweight
- Short circuit protected
- Physical damage to battery case will not cause fire
- Excessive thermal exposure will not cause a fire
- Able to withstand over-charge/over-discharge without damage to the battery
- Sophisticated Battery Management System (BMS)
- IP65 rated
Specification:
Electrical Specifications | LFP12V104B | ||
Nominal Voltage | 12.8V | ||
Nominal Capacity (at .5C, 77°F) | 104Ah | ||
Minimum Capacity (at .5C, 77°F) | 95Ah | ||

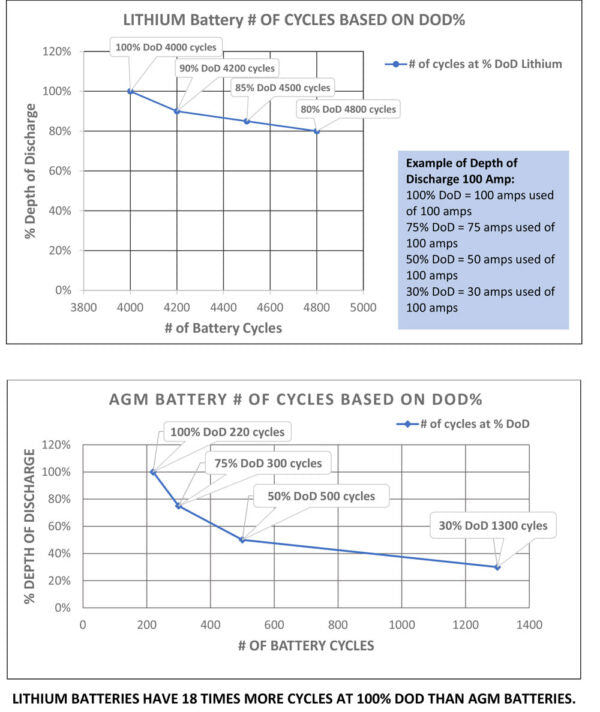

Expected Cycle Life | >4800 cycles w/1C charge and discharge rate, at 77°F, 80% DOD | ||
Operating Specifications | |||
Charge Method | Smart charger, constant current, constant voltage | ||
Charge Voltage Range (Max 14.6V) | 14.2 -14.6V | ||
Continuous Charge Current | 100A Max | ||
Continuous Discharge Current | 100A Max | ||
Peak Instant Discharge Current (10 secs) | 200A | ||
Over Voltage Shutdown | 14.8 +/-.2V | ||
Discharge Cut-off Voltage | 11.2V =/- .5V | ||
Charge/Discharge Temperature | Minus 4° F to 131°F (with built in heater) | ||
Storage Temperature | -4° F to 113° F | ||
Self Disharge (stored at 50% SOC) | < 3%/month | ||
Watt hours | 1280 watt hours | ||
Physical Specifications | |||
Battery Dimensions | 12.75″L x 6.75″W x 8.3″H | 9″H w/terminals | ||
Weight | 26 lb |
Â
Lithium Battery 104Ah with Wake Up, Heater & BT Monitoring 12V LiFePO4
$539.00
/
