Tamarack 4-Panel Ground Mount Kit First Column, 186″ Length

Save time and money with Tamarack Solar’s low-cost rail-based PV module mounting system. Easy installation, simple wire management, strength and reliability, and economical shipping are some of the features of the new UL listed ground based mounting system.

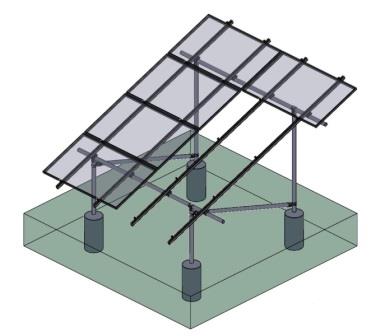

The Tamarack Ground Mount System is assembled using 3.1 inch rail with 2-inch schedule 40 or 80 galvanized steel pipe that is purchased separately. Use four 93 inch rails and two structural splices per column for 4 modules per column. Maximum PV module width is 45 inches.

The system comes with all parts needed except for the 2″ pipe and concrete. Assembly is quick and easy and can be used on almost any terrain.

4 Module First Column Kit contains (4) 93″ rails, (4) 2″ Pipe Caps, (2) Splices, (4) Pipe Mounts, (10) 5050 Clamps, (4) End Caps, (8) Module Lead Clips and (1) Ground Lug

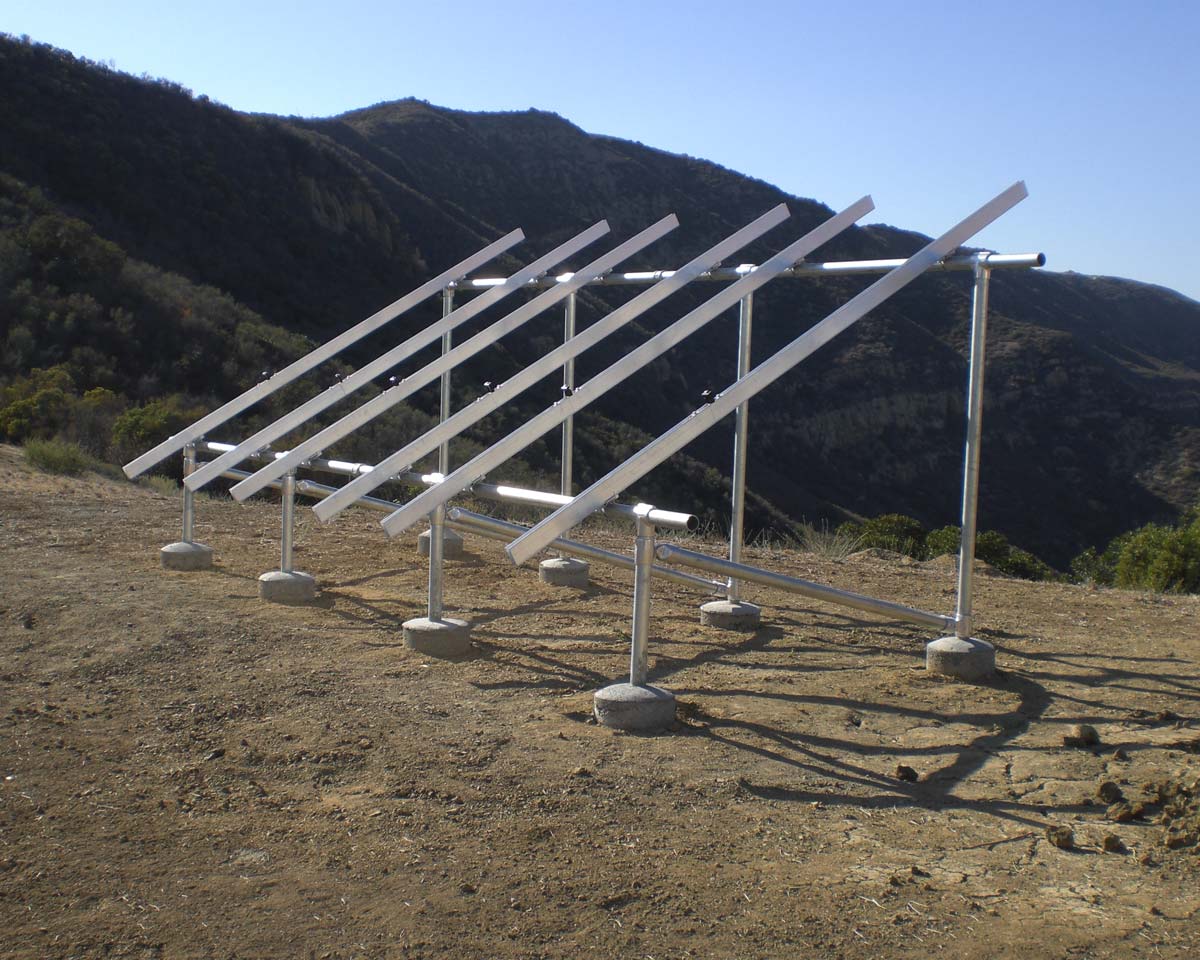

The GMKT modular System makes it easy to expand a First Column installation by use of Add-On Column Kits. Every Add-On 186″ Column kit employed expands the initial installation by an additional 4 panels.

• Simple Design – Arrays can be in columns 4 modules high and any width required
• Easy to install – No welding or drilling and two wrench sizes fit all fasteners
• UL 2703 Listed – All components meet the UL 2703 standards for bonding and grounding
• PE Certified – Pre-stamped engineering letters available for most states
• Easy to configure – Unlimited system size with tilt angles from 0 to 45 degrees
• Simple Wire Management – PV cables and wiring for module-level electronics fits inside rails to avoid time-consuming wire management
• Visually Appealing – Simple to adjust for perfect alignment, even if the surface is irregular
• Extremely Robust – For use in locations with wind speeds up to 170 MPH and ground snow loads of up to 70 PSF

Tamarack 4-Panel Ground Mount Kit Data Sheet

Tamarack Ground Mount Kit Installation Manual

Tamarack Ground Mount Systems Info. Sheet

Shipping weight – 46 Lbs.

Dimensions – 95″ x 8″ x 5″
