Tamarack Ground, Roof, and Awning Mount; 90″ Channel

S-UNI-GR90CV, Tamarack Solar ground, roof, and awning panel mount with 90″ channel.

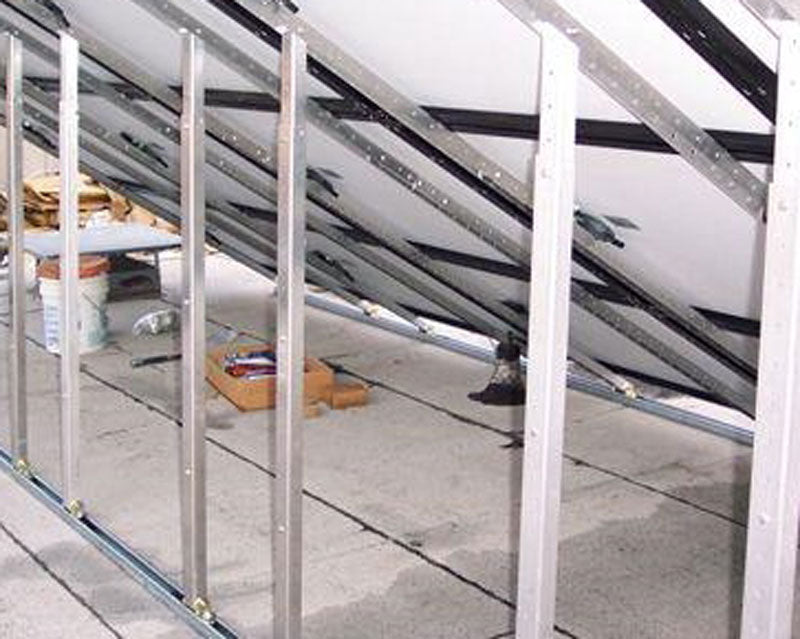

Tamarack offers a simple solution to mounting several smaller panels, or 1 to 2 larger panels on a tilt-up rail mount.  Appropriate for roof, ground, or wall mounting, the mounts feature telescoping legs to easily adjust the seasonal angle for optimum solar exposure.

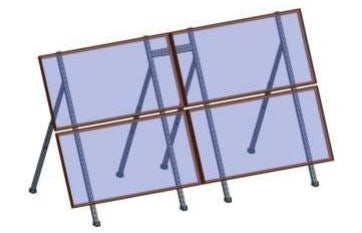

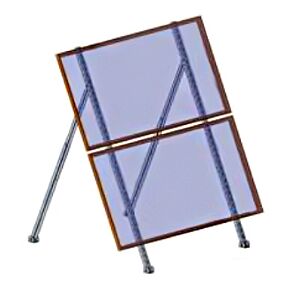

Panels can be attached in Landscape orientation (long dimension runs left to right) or Portrait orientation (long dimension runs up and down).  Compare the width of the panel for Landscape, or the length of the panel for portrait to the overall length of the rail, 90″ in this case.  Example: this 90″ rail can accommodate two QCell 310 watt panel in Landscape orientation with the panels measuring 78.5″ long x 39.4″ wide.

Feel free to call Backwoods for advice in selecting the best mount for your application.

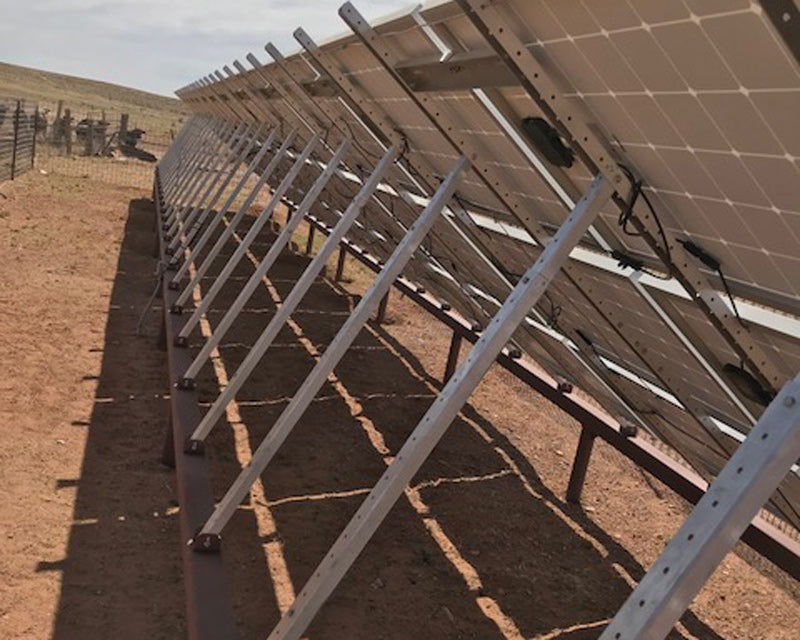

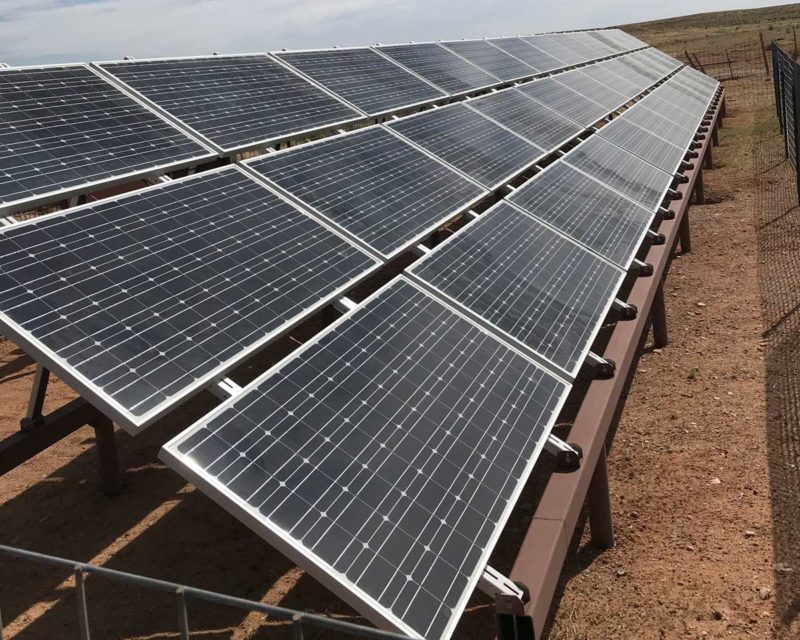

Larger installations using multiple mounts in a row can be tied together using Tamarack’s Mount Intertie Kit, sold separately, for greater structural stability.

Rails, legs, and feet are made of anodized aluminum.  Nut and bolt hardware is stainless steel.

Tamarack UNI-GR (90/130) Ground-Roof Mount Data Sheet

Tamarack UNI-GR (90/130) Ground-Roof Mount Installation Manual

Shipping dimensions: 91″ x 4″ x 4″
Weighs 24 lbs.

model - UNI-GR/90CV

10 Year Warranty
