Tamarack Top of Pole Mount for 3 modules 38″-72″ Long

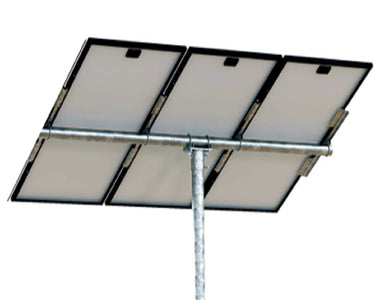

Tamarack Top of Pole Mount for 3 modules 38″-72″ long, on one post, in portrait orientation.
This popular PGRM Mount is designed for mounting three solar modules per mount on a single post in portrait orientation. Engineered for tilt angles ranging from 10° to 60° and allows easy seasonal adjustability. Clamp attachment uses the lip on the back of module frame and accommodates frame thickness between 1.18-inches and 2-inches. See data sheet for more information.
Heavy duty construction, suitable for wind speed up to 150MPH and snow load up to 100PSF (with a maximum height of 6-feet above ground). Simple one-person installation and tilt angle adjustments.
Requires locally sourced 4″ schedule 40 steel pipe (4.5″ OD) for the vertical pole, and 3″ schedule 40 steel pipe (3.5″ OD) for horizontal beam.
General PGRM Mount Components List
Pole Mount Installation Manual
Calculation Packet - Top of Post Ground Mount 3 and 4 Modules
Weight - 65 lbs
Dimensions - 36 × 7 × 7 in
Currently ships in two boxes. Box 1: 36 x 7 x 7 at 28lbs. Box 2: 10 x 9 x 7 at 13lbs.
10 year warranty by Tamarack
Tamarack Top of Pole Mount for 3 modules 38″-72″ Long
$462.00
/
