Tamarack Top of Pole Mount for 6 modules 38″-72″ Long, 2 Posts

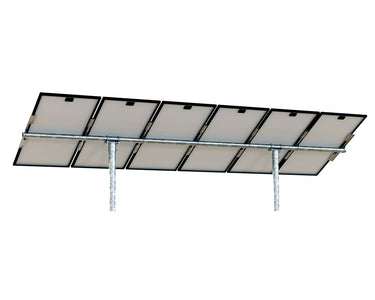

Tamarack Top of Pole Mount for 6 modules 38″-72″, on 2 posts, in portrait orientation.
This popular PGRM Mount is designed for mounting six solar modules in portrait orientation on two posts. Engineered for tilt angles ranging from 10° to 60° and allows easy seasonal adjustability. Clamp attachment uses the lip on the back of module frame and accommodates frame thickness between 1.18-inches and 2-inches. See data sheet for more information.
Heavy duty construction, suitable for wind speed up to 150MPH and snow load up 100PSF. Simple one-person installation and tilt angle adjustments.
Requires locally sourced 4″ schedule 40 steel pipe (4.5″ OD) for the vertical poles, and 3″ schedule 40 steel pipe (3.5″ OD) for horizontal beam.
General PGRM Mount Components List
Pole Mounts Installation Manual
Calculation Packet - Top of Post Ground Mount 5 and 6 Modules
Weight - 100 lbs
Dimensions - 36 × 8 × 8 in
Currently ships in three boxes. Box 1: 36 x 8 x 8 at 51lbs. Box 2: 10 x 9 x 7 at 13lbs. Box 3: 10 x 9 x 7 at 13lbs.
10 year warranty by Tamarack
Tamarack Top of Pole Mount for 6 modules 38″-72″ Long, 2 Posts
$853.00
/
