Tamarack Top Pole Mount TTPA-3-70 for Three 60/72 cell modules

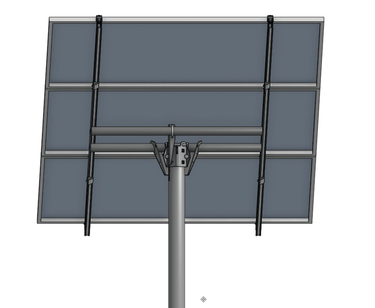

Tamarack Pole Top, for Three 60/72 cell modules

Tamarack Solar Products TTPA series top of pole mount for three 60 or 72 cell modules.  The new TTPA line of post mounts offers a thorough mounting solution at a competitive price.  Two spliced pieces are used to make each 82″ rail reducing shipping costs relative to other mounts in this class.

Installs on top of a 4″ diameter schedule 40 or schedule 80 steel post (purchased locally) to hold three 60 or 72 cell modules with maximum width of 46.16″, in a single column with panels in landscape orientation. TTP-A-3-70 requires 2 sections of schedule-40 pipe. Purchase locally or order Pipe Kits

Mounts are rated as is for 160 mph winds and 200 psf snow load.

Tamarack TTPA Series Installation Manual

TTP-A-370 3 Module Pole Top Mount Spec Sheet

Weight - 135 lbs
model - Tamarack Solar Products TTPA-3

Tilt angle: 10 to 60 degrees
Shipping weight: three boxes total 145 lbs
3 year warranty on finish/10 year warranty on workmanship
