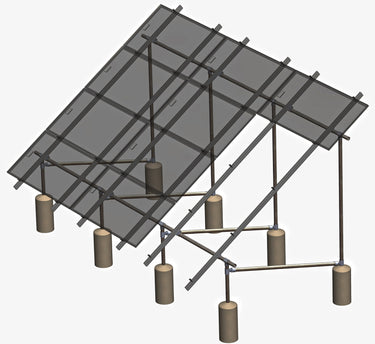

Tamarack Solar Ground Mount Kit GM Kit 4 Module 1st column 93-inch Rail

Innovative Railed Solar Mounting System

A smarter approach to railed solar mounting, designed to make installation faster, simpler, and more versatile.

The system installs using minimal tools and features an intuitive design that helps reduce installation time. Two rail profiles are available to accommodate varying wind and snow load requirements, providing flexibility for a wide range of projects and locations.

Rails are available in convenient 93-inch and 66-inch lengths, making them easier to ship, transport, store, and handle on the job site. Their manageable size also provides greater flexibility when configuring an array.

A unique internal splice system makes it possible to efficiently connect shorter rail sections. The economical splice installs without tools and fits completely inside the rail, keeping it clear of module clamps and mounting points.

The innovative 5050 Module Clamp functions as both a mid-clamp and end-clamp and is compatible with a wide range of solar modules. For a clean, finished appearance, optional Channel Clamps allow rails to be cut flush with the module frames at the ends of each row.

Open rail channels also provide built-in wire management, allowing PV cables and module-level power electronics (MLPE) wiring to be neatly routed inside the rails for a cleaner installation.

The system includes the mounting components needed for installation, with pipe and concrete supplied separately. Assembly is quick and straightforward, and the adjustable design makes it suitable for a variety of terrain conditions.

Key Features

• Simple Design – Configure arrays in columns of three or four modules high and expand to virtually any required width.

• Easy Installation – No welding or drilling required, and only two wrench sizes are needed for all fasteners.

• UL 2703 Listed – Components meet UL 2703 requirements for bonding and grounding.

• PE Certified – Pre-stamped engineering letters are available for most states.

• Flexible Configuration – Supports expandable system sizes and tilt angles ranging from 0° to 45°.

• Clean Appearance – Easily adjustable for proper module alignment, even on uneven or irregular terrain.

• Integrated Wire Management – PV cables and MLPE wiring can be routed inside the rails, reducing the need for additional wire-management hardware.

• Built for Demanding Conditions – Designed for applications with wind speeds up to 170 MPH and ground snow loads up to 50 PSF.

Kit Includes

• Four 93" rails

• Four 2" Tee-Fittings

• Two internal splices

• Four Pipe Mounts

• Ten 5050 Module Clamps

• Four End Caps

• Eight Module Lead Clips

• One Ground Clamp

Please note: Pipe and concrete are not included.
