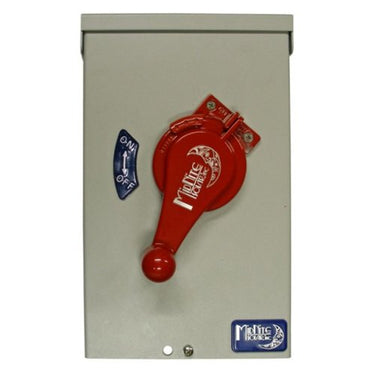

MIDNITE, STRING COMBINER W/ DISCONNECT, MNPV6 DISCO, 6-STRING, 120A/150VDC MAX, NEMA3R, NOT BIRDHOUSE COMPATIBLE
$229.00USD
More About The MIDNITE, STRING COMBINER W/ DISCONNECT, MNPV6 DISCO, 6-STRING, 120A/150VDC MAX, NEMA3R, NOT BIRDHOUSE COMPATIBLE
The MNPV6-Disco Combiner is rated for outdoor use and can be configured for a wide range of applications. Designed for combining up to six strings while simultaneously serving as an ETL listed disconnect switch rated for AC and DC. Accepts up to 1/0 wire.Features & Attributes
- Dimensions (LxWxH): 13.2 × 8 × 6.2 inches
- Weight: 6 lbs
- Convenient disconnect handle
- All aluminum powder coated housing that won’t rust
- Flip up cover that can stay in the open position during installation
- PV Negative bus bar with 14 useable openings (10 #14-6 and 4#1/0-14)
- Standard din rail to mount up to (3) 240VAC breakers; (6) 120VAC breakers; (6) 150V DC circuits or a 600VDC breaker
- Dead front cover snaps into place after wiring is complete for safety
- Listed by ETL in US and Canada
- MPN: MNPV6 DISCO
