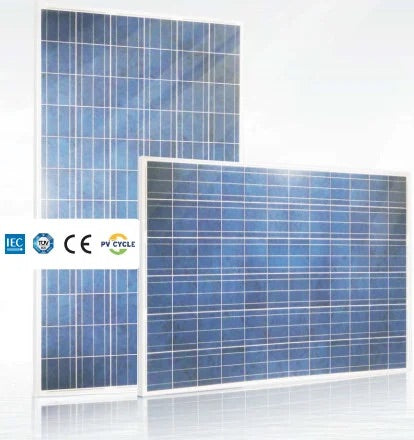

Solar Panels- BYD P6C-36 Series

Electrical Specifications (at STC)

• Rated Power (Pmax): 310 Wp
• Module Efficiency: ~15.98% to 16.0%
• Voltage at Max Power (Vmpp): 36.38 V
• Current at Max Power (Impp): 8.52 A
• Open Circuit Voltage (Voc): 45.79 V
• Short Circuit Current (Isc): 8.99 A
• Maximum System Voltage: 1000 VDC (IEC) / 600 VDC (UL)

Physical & Mechanical Properties

• Cell Type: Polycrystalline
• Number of Cells: 72 (6 × 12)
• Front Glass: 3.2 mm tempered glass with Anti-Reflective Coating (ARC)
• Frame: Anodized aluminum alloy
• Connectors: MC4 or MC4-compatible
• Dimensions: 1956 mm × 992 mm × 40 mm (approximately 77.0" × 39.1" × 1.6")
• Weight: 22.4 kg (49.38 lbs)

BYD Solar Panel Specs
