Tamarack Solar | Ground Mount | Kit C-2IN | 4 Module | 0 Posts | 2-IN Pipe
Key Benefits:
-Heavy-Duty Aluminum Rail System: Includes four 93-inch mill-finish aluminum rails with splice hardware that create two continuous 186-inch rails for long-lasting structural support.
-Faster, Cleaner Installations: Integrated wire management allows PV wiring and module-level electronics cabling to route inside the rails for a cleaner appearance and reduced installation time.
-Built for Harsh Weather: Engineered for installations rated up to 170 MPH wind speeds and 140 PSF snow loads when installed according to Tamarack engineering requirements.
-Certified and Code Compliant: UL 2703 Listed mounting system with Class A fire rating compatibility for Type 1 and Type 2 PV modules. PE-certified engineering documentation is available for all 50 states and Washington, D.C.
Use Cases:
Ideal for expanding an existing Tamarack Solar ground mount installation by adding another four-module landscape section while utilizing the existing structural posts. Perfect for residential, agricultural, rural, commercial, and off-grid solar installations where future system growth is planned.
Tech Specs:
-Modules Supported: 4 Modules (Landscape Orientation)
-Rail Material: 3.1-inch Mill-Finish Aluminum
-Maximum Module Width: 45 inches
-Certification: UL 2703 Listed

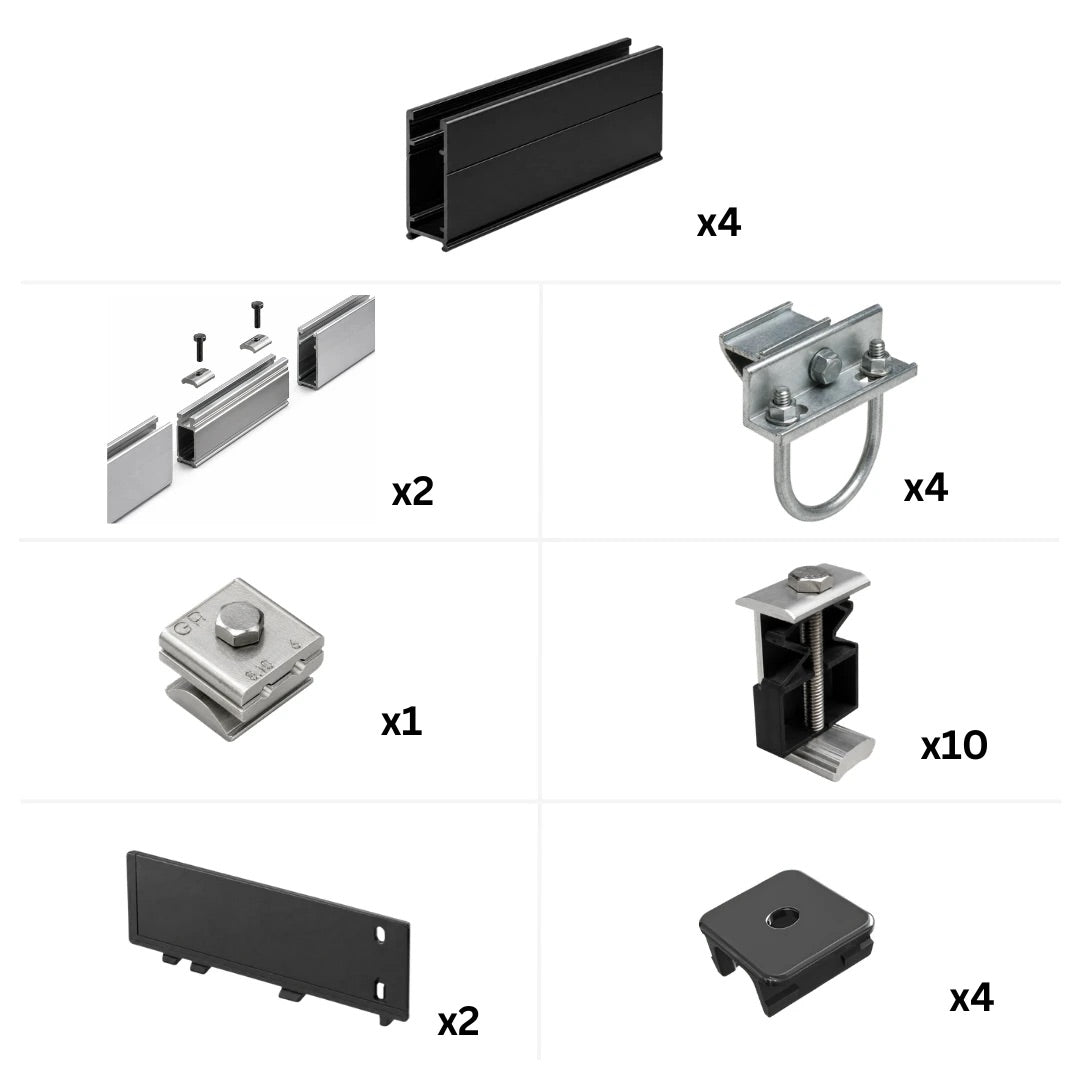

Kit Contents:
4x Tamarack | 3.1 in. Mill Finish Rail | 93 in.
2x Tamarack | 3.1 in Structural Rail Splice
4x Tamarack | Pipe Mount w/ U-Bolts
10x Tamarack | 50/50 Clamp
4x Tamarack | End Cap
1x Tamarack | Ground Lug
8x Tamarack | Wire Clip
Â
Tamarack Solar Ground Mount Kit Installation Manual
Tamarack Solar Ground Mount Kit Data Sheet
Tamarack Solar | Ground Mount | Kit C-2IN | 4 Module | 0 Posts | 2-IN Pipe
$380.00
/
