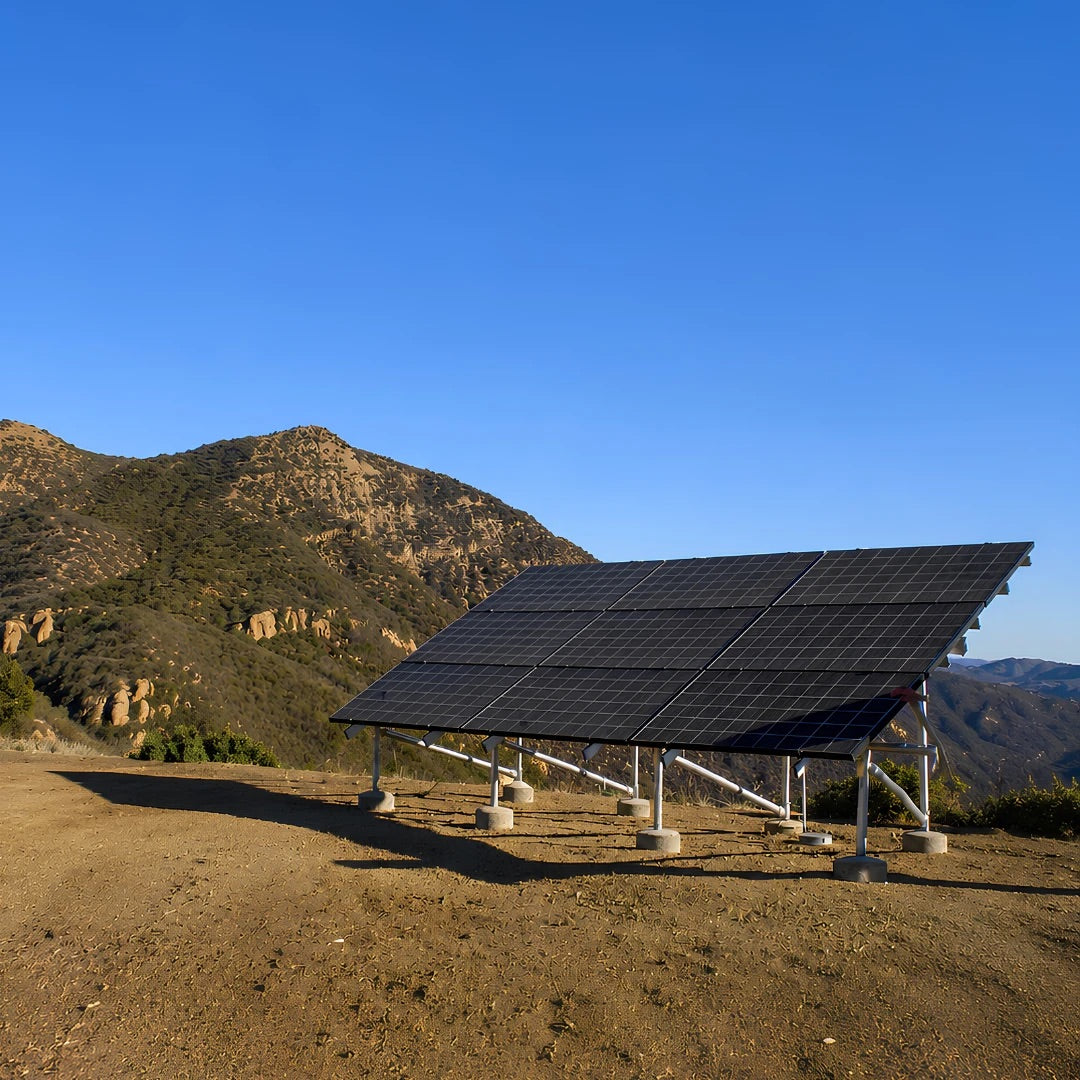

Easily expand your existing Tamarack 4-module ground mount system with the Tamarack Solar GM KIT-X 91535-A Expansion Kit. Designed to extend Tamarack Ground Mount systems configured for four modules per column, this kit provides a simple way to increase the size of your solar array while maintaining the durability, clean design, and reliable installation Tamarack systems are known for.
The GM KIT-X includes the rail, splice, module clamps, and mounting hardware needed to add an additional rail section to your existing ground mount system, making it a convenient solution for expanding your array as your solar needs grow.
Key Benefits:
Complete Rail Expansion Kit: Includes rails, splice, pipe mounts, clamps, end caps, and wire clips needed to extend your racking system.
Fast, Straightforward Installation: Rail-based design, spring-loaded 5050 clamps, and single-socket hardware help simplify installation and reduce labor time.
Integrated Wire Management: Internal rail channels route PV wiring and module-level electronics neatly inside the rails for a clean, professional installation.
Certified for Safety: UL 2703 Listed components with integrated bonding and grounding provide reliable performance and code-compliant installation.
Ideal for expanding compatible Tamarack 4-module-per-column ground mount systems when additional solar modules are being added to an existing array.
Tech Specs:
-Wind Rating: Up to 170 MPH
-Snow Load Rating: Up to 140 PSF
-Maximum Module Width: 45 inches
-Certifications: UL 2703 Listed, Class A Fire Rating

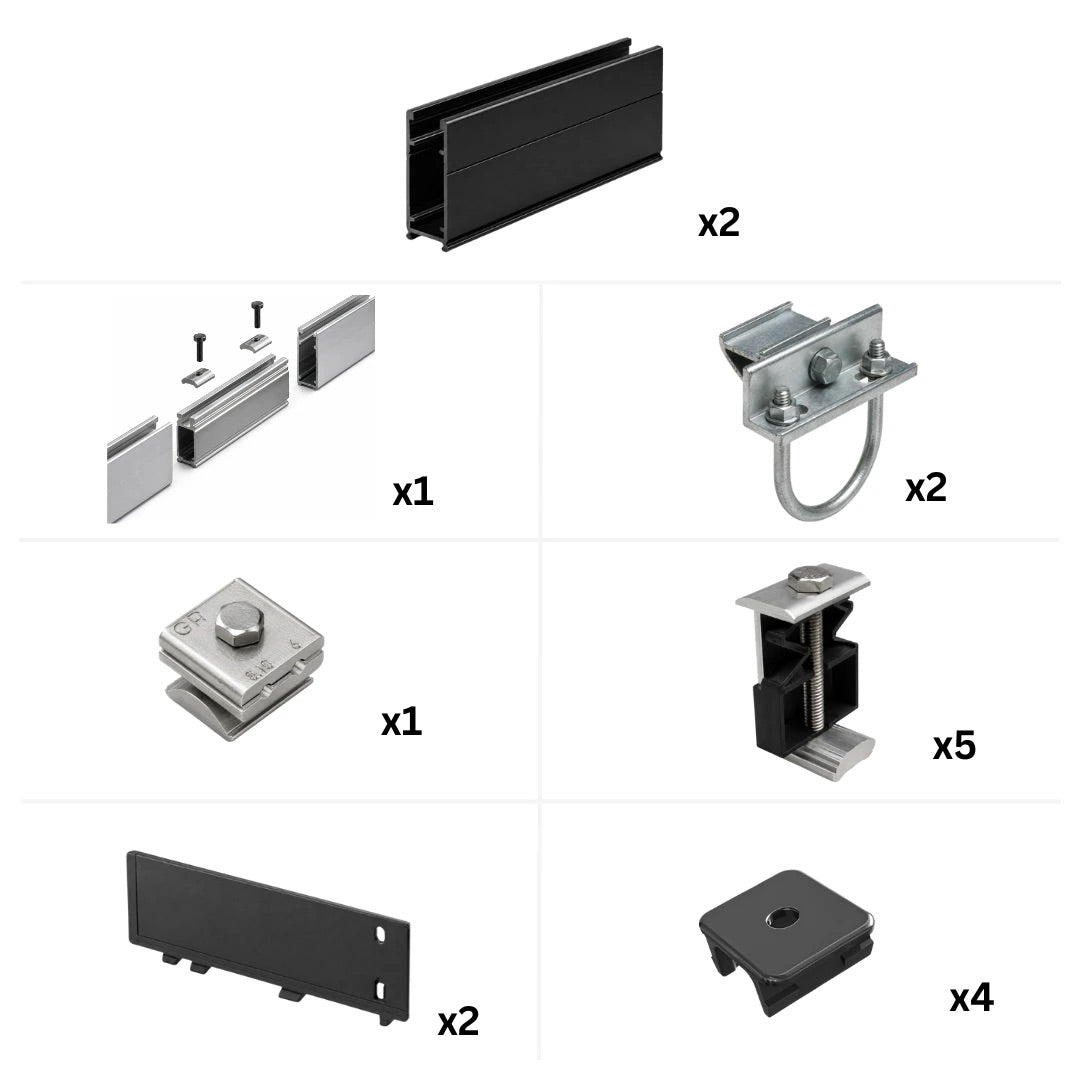

Kit Contents:
2x Tamarack | 3.1 in. Mill Finish Rail | 93 in.
1x Tamarack | 3.1 in Structural Rail Splice
2x Tamarack | Pipe Mount w/ U-Bolts
5x Tamarack | 50/50 Clamp
2x Tamarack | End Cap
1x Tamarack | Ground Lug
4x Tamarack | Wire Clip
Tamarack Solar Ground Mount Kit Installation Manual
Tamarack Solar Ground Mount Kit Data Sheet
Tamarack Solar Ground Mount System Data Sheet
Tamarack Solar Ground Mount System Installation Manual
